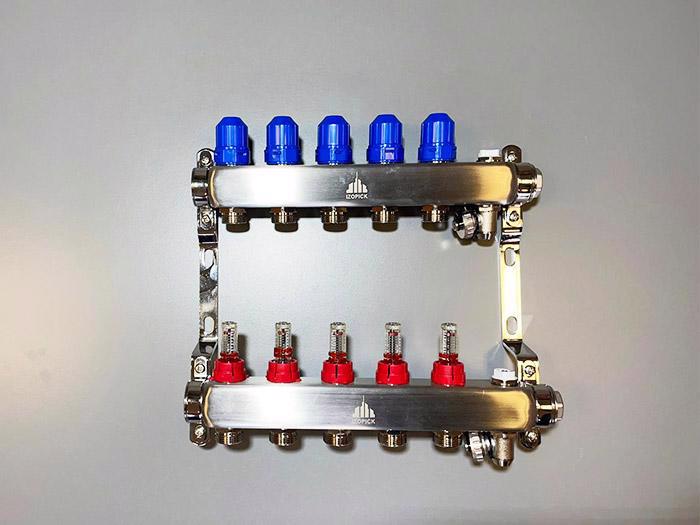

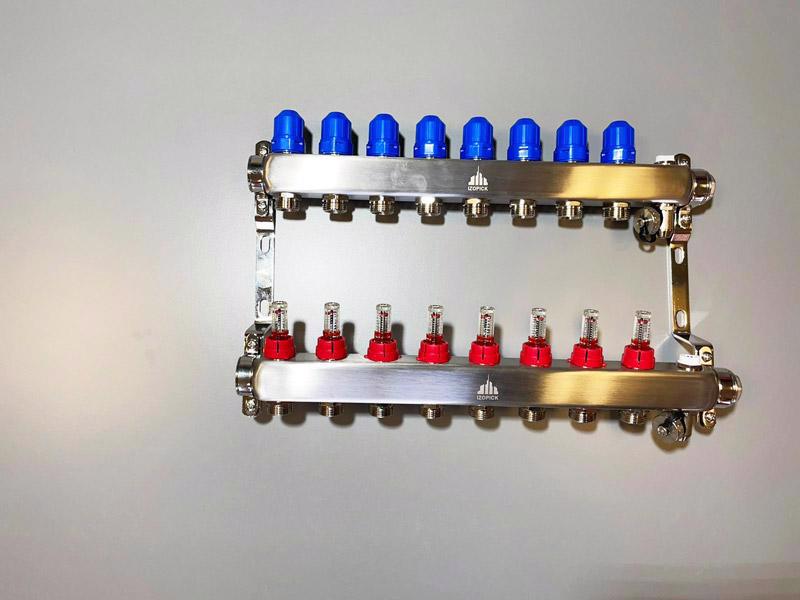

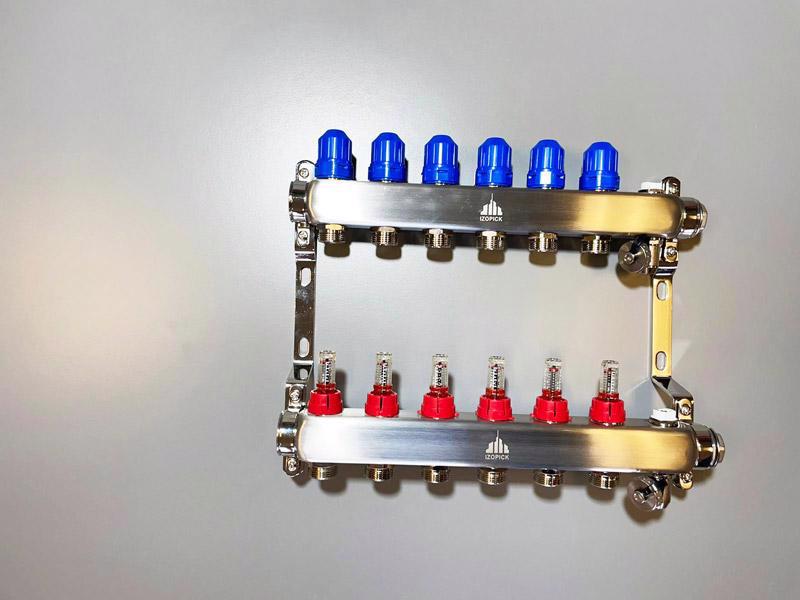

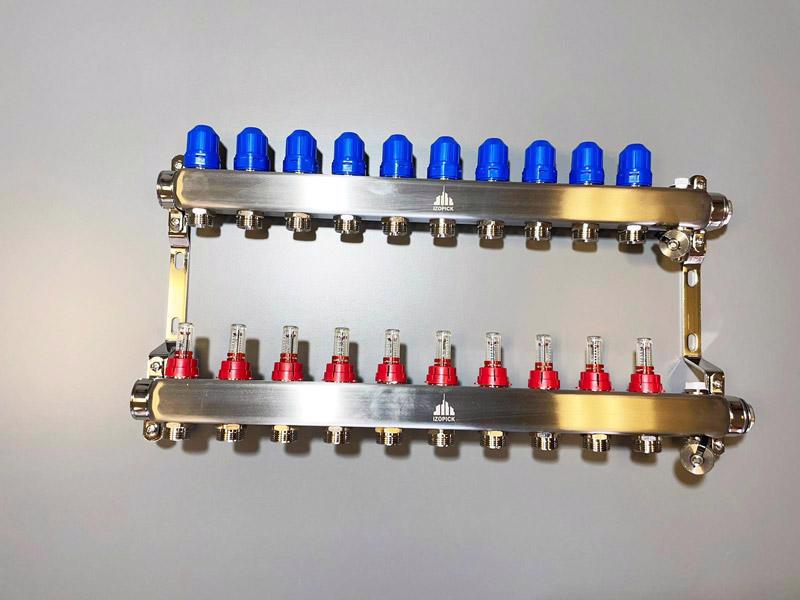

Underfloor Heating Manifold
Code: PROD06
Tour-retour bar completely pre-assembled with:
- Manifold bar with control valves and black protection caps, in accordance with DIN EN 1264-4, with output R 3/4" connectors, internal connectors in accordance with DIN EN 16313, nickel-plated brass
- Two R 3/4" nickel-plated brass stoppers
- Two 200 x 54,4 x 34,5 wall mounts, inserts for soundproofing installed in the structure (DIN 4109), including mounting materials (one wall mount for the manifold with two heating circuits)
- Two 1" flat gaskets
